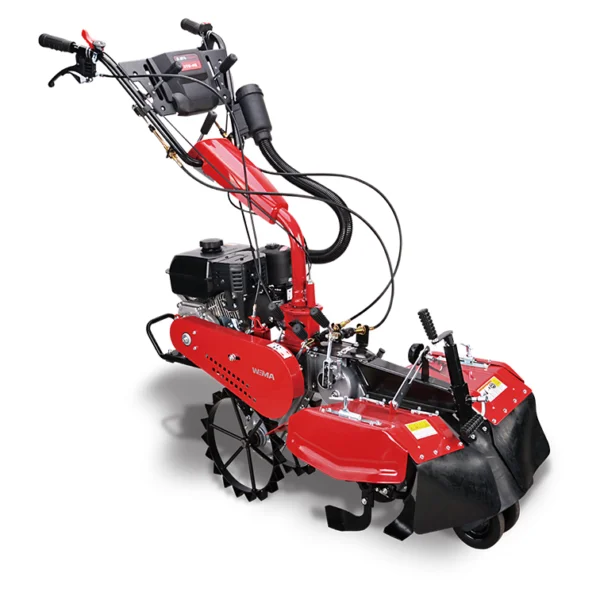

WMX 650/650A/650B
Description
Introduction:
Handle can be adjusted as required，Adjust Support Wheel to Suit Different Soil and Terrain
.Compact and Attractive Structure，Easy Gear Shifting Allows Convenient Operation
.Blades Numbers Optional to Suit Different Requirements
| Model | WMX650 | WMX650A | WMX650B |
| Body size(mm) | 1600×750×880 | 1600×750×880 | 1600×750×880 |
| Tilling scope(mm) | ditching width：290～320 | ditching width：290～320 | Bitmap |
| tilling width：420～650 | tilling width：420～650 | ditching width：290～320 | |
| tilling width：420～650 | |||
| Tilling depth(mm) | ≥100mm | ≥100mm | ≥100mm |
| Gear shifting | walking gearbox：forward(H、L)、0、reverse(H、L) | walking gearbox：forward(H、L)、0、reverse(H、L) | walking box：forward(H、L)、0、reverse(H、L) |
| Tilling gearbox : high drive ratio（H、L） | Tilling gearbox : high drive ratio（H、L） | ploughing box: high drive ratio（H、L） | |
| low drive ratio (H、L) | low drive ratio (H、L) | low drive ratio (H、L) | |
| Driving model | gear+chain+belt | gear+chain+belt | gear+chain+belt |
| Transmission oil capacity(L) | walking gearbox：1.5 | walking gearbox：1.5 | walking gearbox：1.5 |
| Tilling Gearbox：1.2 | Tilling Gearbox：1.2 | Tilling Gearbox：1.2 | |
| Engine model | WM170F/P-2-L | WM177F/P-3 | WM178FS |
| Max power hp(kw)rpm | 7（4.5）/1800 | 9(6.0)/1800 | 6(4.2)/1800 |
| N.W/G.W(kg) | 88/98 | 99/109 | 106/116 |
| Packaging Dimension(mm) | 1280×440×730 | 1280×470×820 | 1280×470×820 |
| Accessories | 5pcs ditching blade, 3pcs 3 group rotary blade, 1 set of 30mm iron wheel, 1 set of 3.5-5 rubber tyre | 5pcs ditching blade, 3pcs 3 group rotary blade, 1 set of 30mm iron wheel, 1 set of 3.5-5 rubber tyre | 5pcs ditching blade, 3pcs 3 group rotary blade, 1 set of 30mm iron wheel, 1 set of 3.5-5 rubber tyre |
